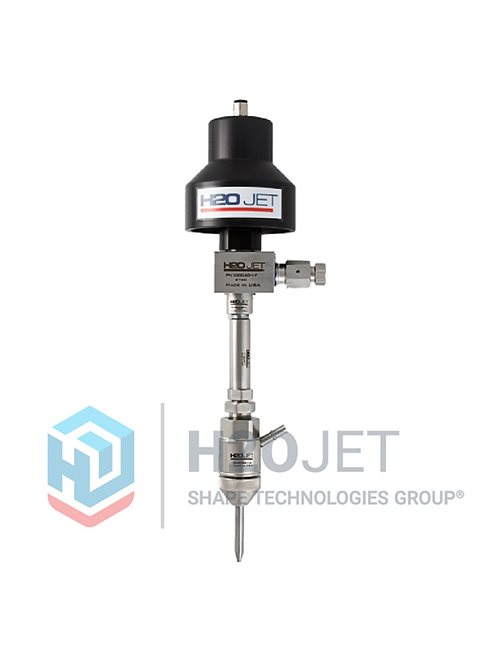

IDE®-III Cut HD.011 SP On / Off Adj Nozzle Body #301324-1-9-11
Double-tap and hold to zoom.
Mouse over the image to zoom.

IDE®-III Cut HD.011 SP On / Off Adj Nozzle Body #301324-1-9-11

Product Code: WESVP311

Complete cutting head assembly - Start with a complete assembly for the ultimate in performance.
- actuator has vented cap for reliable, long-term operation. Just remove and clean the cap filter periodically to extend actuator life. Actuator needs about 80ft lbs.
- on/off valve is designed for long performance but is also upgradeable to the "Extend-life" kit for about 2x performance (especially for those who cut with extreme on/off cycling).
- adjustable nozzle body allows indexing the mixing chamber to be aligned to direction of abrasive feeder for smoother garnet flow.
- IDE-III mixing chamber - the ultimate mixing chamber that uses less garnet and extends diamond life far longer, while providing a tighter stream for long projects. This mixing chamber has 1 abrasive inlet which will last longer than dual port version (i.e. This version has no port for pressure sensor / vacuum assist.
Kit includes a standard, low cost, nozzle with our unique, proprietary design. Get back to focusing on cutting with the best cutting head assembly available with built-in diamond - this kit is IT.
Air Inlet is for 1/4" OD hose; 90 degree elbow air hose adapter included.
Minimum water pressure with standard on/off valve kit is 12,000psi.

$2,359.560 /Each
